Most Used Features and Controls



General Information



Section 2 Features and Controls

Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem.

Warnings and Abnormal Operations

Normal Operating Procedures

Door Locks

CAUTION

Unlocked doors can be dangerous. Passengers -- especially children -- can easily open the doors and fall out. When a door is locked, the inside handle wonít open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors arenít locked. Wear safety belts properly, lock your doors, and you will be far better off whenever you drive your vehicle.

Locking and unlocking your vehicle

To lock the door from the inside

To unlock the door from the inside,

Return To Door Locks

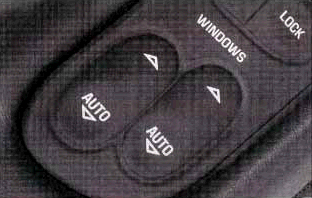

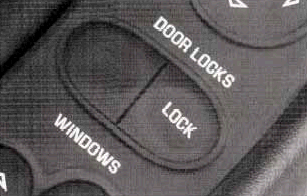

Power Door Locks

To lock or unlock both doors at once.

Return To Door Locks

Leaving Your Vehicle

If you are leaving the vehicle,

Remote Function Actuator, or key FOB transmitter function

Return To Door Locks

Memory (Option)

MEMORY

The MEMORY buttons



Return To Memory

Remote Function Actuation System

Remote Function Actuation (RFA) system

Your vehicle

If you ever notice a decrease in the key fob transmitter range

Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.

If you ever notice a decrease in the key fob transmitter range, try doing one of the following:

Return to Remote Function Actuation System

Operation

You donít have to do anything for the RFA to work when the passive feature is on.

Turning on the passive feature

Actively unlock your vehicle

Actively Unlock The Hatch/Trunk Lid

If you move out of range with the slider switch set to ON, the key fob transmitter will:

If you leave your keys in the ignition and attempt to lock the doors

The doors still will not lock.

If you lock your keys in the vehicle and didnít leave them in the ignition with the passive slide switch is in the ON position.

  1. After 15 seconds of no motion, the key FOB transmitter shuts down to save the battery.
  2. Wait about 30 seconds,
  3. Then rock the vehicle.
  4. The key fob transmitter should "wake up" and unlock the doors.

You can be locked out of your vehicle

Return to Remote Function Actuation System

Panic Alarm Button

Your vehicleís horn will sound if

If the horn alarm sounds, there are three ways to turn it off:

  1. Push the panic alarm button on the key fob transmitter again.
  2. Wait 90 seconds, and the horn will turn off by itself or
  3. Turn the key to any position in the ignition switch, except OFF.

Return to Remote Function Actuation System

RFA Settings

To adjust the RFA settings on the system through the Driver Information Center (DIC).

Return to Remote Function Actuation System

Turning the Passive System Off

You can disable the passive feature

To guarantee the key fob transmitter is turned on or off

To check whether the passive system is on or off

When working around your vehicle and have your keys with you,

Return to Remote Function Actuation System

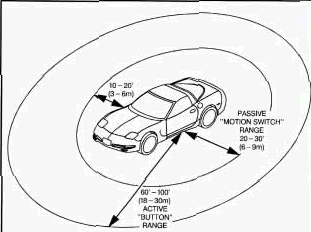

Transmitter Range

The active range (using one of the four buttons) of the key fob transmitter is approximately

The passive range (having the slider switch set to ON) is approximately

Return to Remote Function Actuation System

Resynchronizing Your Transmitter

Your RFA system

  1. Get closer to the vehicle and try pressing a button again.
  2. While standing close to your vehicle,
    • Press the LOCK and UNLOCK buttons on your transmitter at the same time
    • Hold for seven seconds.
    • This will attempt to resynchronize the security code in your RFA key FOB transmitter.
  3. When resynchronization is achieved the horn will chirp.

Loss of synchronization will occur

If attempts to resynchronize your transmitter to the vehicle are not successful,

Return to Remote Function Actuation System

Matching Transmitter(s) To Your Vehicle

Each key FOB transmitter is coded to prevent another transmitter from unlocking your vehicle.

To match transmitters to your vehicle:

  1. Turn the ignition key to the ON position.
  2. Clear any warning messages on the Driver Information Center (DIC) by pressing the RESET button.
  3. Press the OPTIONS button on the DIC several times until the blank page is displayed,
  4. When the message FOB TRAINING is displayed,
  5. Press and hold the LOCK and UNLOCK buttons on the transmitter simultaneously for 15 seconds.
  6. When a transmitter is learned,
  7. Repeat Steps 5 and 6 for each additional transmitter.
  8. Remove the key from the ignition.

The programming mode will shut off if:

If a transmitter is lost or stolen,

Return to Remote Function Actuation System

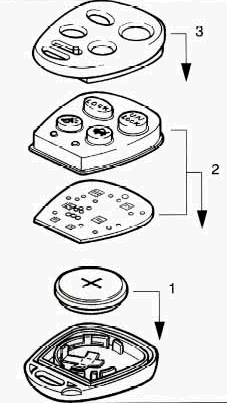

Battery Replacement

  1. Insert a coin into the slot on the back of the transmitter and gently pry apart the front and back.
  2. Gently pull the battery out of the transmitter.
  3. Put the new battery in the transmitter, positive (+) side up.
  4. Reassemble the transmitter in the order shown.
  5. Resynchronize the transmitter. (See "Resynchronizing Your Transmitter" .)
  6. Test the transmitter.

Under normal use,

NOTICE:

When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter.

Replacing Your Battery

Return to Remote Function Actuation System

Remote Hatch/Trunk Lid Release

To use the remote hatch/trunk lid release on automatic transmission vehicles,

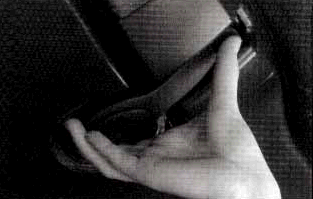

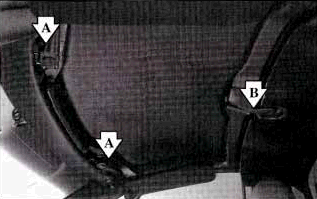

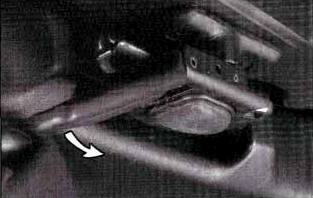

To use the manual release cables to open the hatch and you have lost battery power

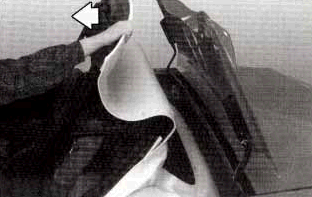

To use the manual release cable to open the trunk lid



CAUTION

It can be dangerous to drive with the hatch/trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You canít see or smell CO. It can cause unconsciousness and even death.

If you must drive with the hatch/trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the hatch/trunk lid:

See "Engine Exhaust" in the Index.

NOTICE:

If you put things in the hatch/trunk area, be sure they wonít break the glass when you close it. Never slam the hatch/trunk lid down. You could break the glass or damage the defogger grid. When you close the hatch/trunk lid, make sure you pull down from the center, not the sides. If you pull the hatch/trunk lid down from the side too often, the weatherstrip can be damaged.

NOTICE:

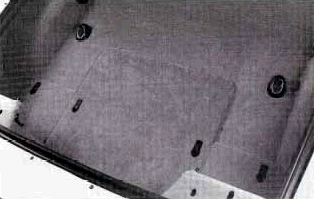

Do not store heavy or sharp objects in the three storage compartments located in the hatch/trunk area. If you do, the objects could damage the underbody.

Return to Remote Hatch/Trunk Lid Release

Theft

Although your vehicle has a number of theft-deterrent features,

Return to Remote Hatch/Trunk Lid Release

Key in the Ignition

If you leave your vehicle with the keys inside,

When you park your vehicle and open the driverís door,

Return to Remote Hatch/Trunk Lid Release

Parking at Night

Return to Remote Hatch/Trunk Lid Release

Parking Lots

If you park in a lot where someone will be watching your vehicle,

Return to Remote Hatch/Trunk Lid Release

Universal Theft-Deterrent System

Your Corvette has a theft-deterrent alarm system.

Arming the Theft-Deterrent System

  1. Press the LOCK button on the key fob transmitter, as mentioned earlier, OR
  2. Walk out of range with the passive switch on OR
  3. Open the door.
    1. The SECURITY light should flash
    2. Lock the door with the power door lock switch.
    3. The SECURITY light will stop flashing and stay on.
    4. Close all the doors.
    5. The SECURITY light should go off.



If a door or the hatch/trunk lid is opened without the key or the key fob transmitter system,

The theft-deterrent system wonít arm if

If your passenger stays in the vehicle when you leave with the keys

Always use your key or the key FOB transmitter to unlock a door.

If you do set off the alarm, there are four ways to stop it:

Return To Universal Theft-Deterrent System

Testing the Alarm

  1. Make sure the rear hatch/trunk lid is latched.
  2. Lower a window on the door.
  3. Manually arm the system with the power door lock switch.
  4. Close the doors and wait 15 seconds.
  5. Reach through the open window and press the power unlock button.
  6. Open the door.
  7. Turn off the alarm.

If the alarm is inoperative,

Return To Universal Theft-Deterrent System

PASS-Key@

Your vehicle is equipped with the PASS-Key (Personalized Automotive Security System) theft-deterrent system.



When the PASS-Key system senses that someone is using the wrong key,

The key must be clean and dry before itís inserted in the ignition or the engine may not start.

If you accidentally use a key that has a damaged or missing resistor pellet

If the resistor pellet is damaged or missing,

If the SECURITY light comes on while driving

If you lose or damage a PASS-Key ignition key,



New Vehicle "Break-In"

NOTICE: Your vehicle doesnít need an elaborate "break-in."



It will perform better in the long run if you follow these guidelines:



Ignition Switch

With the key in the ignition switch, you can turn the switch to four positions.

OFF:

Return to Ignition Switch

ACC:

Return to Ignition Switch

ON:

Return to Ignition Switch

START:

CAUTION

Removing the key from the ignition switch will lock the steering column and result in a loss of ability to steer the vehicle. This could cause a collision. If you need to turn the engine off while the vehicle is moving, turn the key to ACC.

NOTICE:

If your key seems stuck in OFF and you canít turn it, be sure you are using the correct key; if so, is it all the way in? Turn the key only with your hand. Using a tool to force it could break the key or the ignition switch. If none of this works, then your vehicle needs service.

Return to Ignition Switch

Retained Accessory Power (RAP)

With RAP

Return to Ignition Switch

Starting Your Engine

This vehicle has a computer system that monitors

Automatic Transmission

Move your shift lever to PARK (P) or NEUTRAL (N) to start.

NOTICE:

Donít try to shift to PARK (P) if your Corvette is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped.

Return to Starting Your Engine

Manual Transmission

The gear selector should be in NEUTRAL (N).

Return to Starting Your Engine

Starting Your Engine

1. Without pushing the accelerator pedal,

NOTICE: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor.

2. If it doesnít start within 10 seconds,

Starting your engine in very cold weather (below 0įF or -18"C)

  1. With your foot off the accelerator pedal, turn the ignition key to START and hold it there.
  2. If your engine still wonít start (or starts but then stops), it could be flooded with too much gasoline.

NOTICE: Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you donít, your engine might not perform properly. If you ever have to have your vehicle towed, see the part of this manual that tells how to do it without damaging your vehicle. See "Towing Your Vehicle" in the Index.

Return to Starting Your Engine

Starter Interlock Feature

Your vehicle is equipped with a starter interlock feature

Return to Starting Your Engine

Racing or Other Competitive Driving

See your Warranty Book before using your vehicle for racing or other competitive driving.

NOTICE:

If you use your vehicle for racing or other competitive driving, your engine may use more oil than it would with normal use. Low oil levels can damage the engine. Be sure to check the oil level often during racing or other competitive driving and keep the level at or near the upper mark on the engine oil dipstick. You may need to add oil. See "Adding Oil" under "Engine" in the Index.

Return to Starting Your Engine

Engine Coolant Heater

(Canada Only)

The engine coolant heater

In very cold weather, 0 O F (- 18 O C) or colder,

Return To Engine Coolant Heater

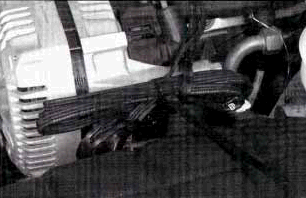

To Use the Engine Coolant Heater

  1. Turn off the engine.
  2. Open the hood and unwrap the electrical cord.
  3. Plug it into a normal, grounded 110-volt AC outlet.
  4. Before starting the engine, be sure to unplug and store the cord as it was before to keep it away from moving engine parts.



CAUTION

Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a fire. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord wonít reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.

How long should you keep the coolant heater plugged in

Return To Engine Coolant Heater

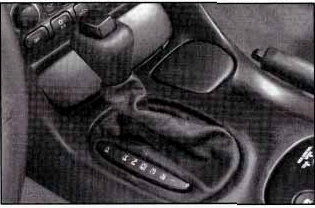

Automatic Transmission Operation

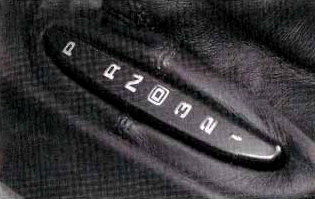

There are several different positions for your shift lever.

PARK (P):

CAUTION

It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Donít leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle wonít move, even when youíre on fairly level ground, always set your parking brake and move the shift lever to PARK (P). See "Shifting Into PARK (P)" in the Index.

Return to Automatic Transmission Operation

REVERSE (R): Use this gear to back up.

NOTICE:

Shifting to REVERSE (R) while your vehicle is moving forward could damage your transmission. Shift to REVERSE (R) only after your vehicle is stopped.

NEUTRAL (N):

CAUTION

Shifting out of PARK (P) or NEUTRAL (N) while your engine is "racing" (running at high speed) is dangerous. Unless your foot is firmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Donít shift out of PARK (P) or NEUTRAL (N) while your engine is racing.

NOTICE:

Damage to your transmission caused by shifting out of PARK (P) or NEUTRAL (N) with the engine racing isnít covered by your warranty.

Return to Automatic Transmission Operation

AUTOMATIC OVERDRIVE :

Return to Automatic Transmission Operation

THIRD (3):

Return to Automatic Transmission Operation

SECOND (2):

Return to Automatic Transmission Operation

FIRST (1):

NOTICE:

If your rear wheels canít rotate, donít try to drive. This might happen if you were stuck in very deep sand or mud or were up against a solid object. You could damage your transmission. Also, if you stop when going uphill, donít hold your vehicle there with only the accelerator pedal. This could overheat and damage the transmission. Use your brakes or shift into PARK (P) to hold your vehicle in position on a hill.

Return to Automatic Transmission Operation

Manual Transmission Operation

6-Speed

This is your shift pattern. Hereís how to operate your transmission:

FIRST (1):

Return To Manual Transmission Operation

SECOND (2):

Return To Manual Transmission Operation

THIRD (3), FOURTH (4), FIFTH (5) AND SIXTH (6):



Return To Manual Transmission Operation

NEUTRAL (N).

Return To Manual Transmission Operation

REVERSE (R):

To back up,

Your six-speed manual transmission has a feature that allows you to safely shift into REVERSE (R)

Return To Manual Transmission Operation

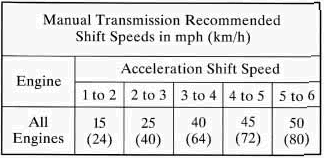

Shift Speeds (Manual Transmission)

This chart shows when to shift to the next higher gear for best fuel economy.

you should downshift to the next lower gear

NOTICE:

When you are shifting gears, don't move the gearshift lever around needlessly. This can damage parts of the transmission and may require costly repair. Shift directly into the next appropriate gear.

Return To Manual Transmission Operation

One to Four Light (Manual Transmission)

When this light comes on,

Return To Manual Transmission Operation

NOTICE:

Do not try to force the shift lever into SECOND (2) or THIRD (3) when the ONE TO FOUR light comes on. Do not try to re-engage FIRST (1) after starting to shift into FOURTH (4). You will damage your transmission. Shift only from FIRST (1) to FOURTH (4) when the light comes on.

This light will come on when:

Return To Manual Transmission Operation

Downshifting (Manual Transmission)

Do not downshift into the gear shown below at a speed greater than shown in the table:

FIRST (1) .................... 50 mph (80 km/h)

SECOND (2) ................ 74 mph (1 19 km/h)

THIRD (3) ................. 101 mph (163 km/h)

FOURTH (4) ............... 130 mph (209 km/h)

NOTICE:

If you skip more than one gear when you downshift, or if you race the engine when you downshift, you can damage the clutch, driveshaft or transmission.

The six-speed transmission has a spring that centers the shift lever near THIRD (3) and FOURTH (4).

CAUTION

If you skip more than one gear when you downshift, you could lose control of your vehicle. And you could injure yourself or others. Donít shift from SIXTH (6) to THIRD (3), FIFTH (5) to SECOND (2) or FOURTH (4) to FIRST (1).

Return To Manual Transmission Operation

Parking Brake

NOTICE:

Driving with the parking brake on can cause your rear brakes to overheat. You may have to replace them, and you could also damage other parts of your vehicle. Make sure the brake warning light is not on before driving.

Return To Manual Transmission Operation

Return To Manual Transmission Operation

Shifting Into PARK (P)

(Automatic Transmission Only)

CAUTION:

It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running,. the vehicle can move suddenly. You or others could be injured. To be sure your vehicle wonít move, even when youíre on fairly level ground, use the steps that follow.

Return To Shifting Into Park

Leaving Your Vehicle With the Engine Running (Automatic Transmission Only)

CAUTION:

It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire. You or others could be injured. Donít leave your vehicle with the engine running unless you have to.

Return To Shifting Into Park

Torque Lock (Automatic Transmission)

The weight of the vehicle may put too much force on the parking pawl in the transmission if you

To prevent torque lock,

When you are ready to drive,

Return To Shifting Into Park

Shifting Out of PARK (P) (Automatic Transmission)

Return To Shifting Into Park

Your vehicle has a brake-transmission shift interlock.

As a prompt,

If you cannot shift out of PARK (P),

If you ever hold the brake pedal down but still canít shift out of PARK (P), try this:

  1. Turn the key to the ACC position.
  2. Apply and hold the brake until the end of Step 4.
  3. Shift to NEUTRAL (N).
  4. Start the engine and then shift to the drive gear you want.
  5. Have your vehicle inspected by your dealer as soon as possible.

Return To Shifting Out of Park

Parking Your Vehicle (Manual Transmission)

Before you get out of your vehicle,

  1. Put your manual transmission in REVERSE (R) and
  2. Firmly apply the parking brake.

Return To Parking Your Vehicle (Manual Transmission)

Parking Over Things That Burn Engine Exhaust

CAUTION

Things that can burn could touch hot exhaust parts under your vehicle and ignite. Donít park over papers, leaves, dry grass or other things that can burn.

Return To Parking Your Vehicle (Manual Transmission)

Engine Exhaust

CAUTION

Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you canít see or smell. It can cause unconsciousness and death.

If you ever suspect exhaust is coming into your vehicle:

Return To Parking Your Vehicle (Manual Transmission)

Running Your Engine While Youíre Parked (Automatic Transmission)

Itís better not to park with the engine running.

CAUTION

Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle (see the earlier Caution under "Engine Exhaust").

Also, idling in a closed-in place can let deadly carbon monoxide (CO) into your vehicle even if the fan switch is at the highest setting. One place this can happen is a garage. Exhaust, with CO, can come in easily. NEVER park in a garage with the engine running.

Another closed-in place can be a blizzard. (See "Blizzard" in the Index.)

Return To Running Your Engine While You're Parked

CAUTION

It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Donít leave your vehicle when the engine is running unless you have to. If youíve left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle wonít move, even when youíre on fairly level ground, always set your parking brake and move the shift lever to PARK (P).

Follow the proper steps to be sure your vehicle wonít move.

Return To Running Your Engine While You're Parked

Limited-Slip Rear Axle

Your limited-slip rear axle can give you additional traction on snow, mud, ice, sand or gravel.

Return To Limited-Slip Rear Axle

Selective Real Time Damping (Option)

You may have a ride control system on your vehicle called Selective Real Time Damping (SRTD).

Return To Selective Real Time Damping

TOUR:

Return To Selective Real Time Damping

SPORT:

Return To Selective Real Time Damping

PERF:

You can select a setting at any time.

There are three Driver Information Center messages

Return To Selective Real Time Damping

Windows

Power Windows

With power windows

Return To Selective Real Time Damping

Express-Down Window

Both the driverís and passengerís window switches have an express-down feature.

Return To Selective Real Time Damping

Horn

To sound the horn,

Tilt Wheel

A tilt wheel allows you to adjust the steering wheel.

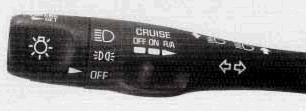

Turn Signal Multifunction Lever

The multifunction lever on the left side of the steering column includes your:

Return To Turn Signal Multifunction Lever

Turn and Lane Change Signals

The turn signal has

To signal a turn,

To signal a lane change,

Return To Turn Signal Multifunction Lever

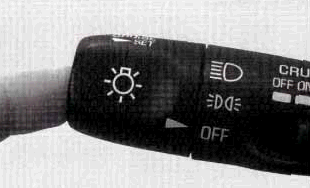

Headlamps

The headlamp band controls these lamps:

Turn the band to this symbol to turn on your headlamps and other operating lamps.

Turn the band to this symbol to turn on your parking and other operating lamps without your headlamps.

Turn the band to OFF to turn off the lamps.

Return To Turn Signal Multifunction Lever

Headlamp Doors

The headlamp doors are designed to

To open the Headlamp doors manually

The headlamp doors should be open

NOTICE:

In order to avoid possible contact of the hood to the headlamp doors, care should be taken in raising the hood with the headlamps up, or shut off the lamps prior to opening the hood.

Return To Turn Signal Multifunction Lever

Lamps On Reminder

The Lamps On Reminder will chime if

Return To Turn Signal Multifunction Lever

Headlamp High/Low-Beam Changer



To change the headlamps  from low beam to high or high to low,

To change the headlamps from high to low

Return To Turn Signal Multifunction Lever

Flash-To-Pass

To operate the Flash-To-Pass

Return To Turn Signal Multifunction Lever

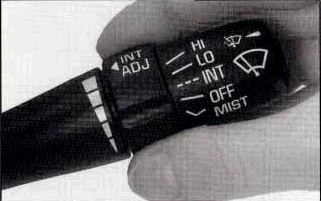

Windshield Wipers

You can control the windshield wipers

For a single wiping cycle of the windshield wipers

You can set the wiper speed for a long or short delay between wipes.

To set the wiper speed for a long or short delay between wipes

For steady wiping at low speed,

For steady high-speed wiping,

To stop the wipers,

Be sure to clear ice and snow from the wiper blades before using them.

Return To Turn Signal Multifunction Lever

Windshield Washer

The lever on the right side of your steering column also controls your windshield washer.

To spray washer fluid on the windshield,

CAUTION

In freezing weather, donít use your washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision.

If the fluid in the windshield washer fluid reservoir is low,

Return To Turn Signal Multifunction Lever

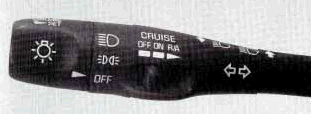

Cruise Control

With cruise control

When using cruise control,

The Driver Information Center (DIC) will display the cruise set speed in a digital number.

CAUTION

If your vehicle is in cruise control when the traction control system begins to limit wheel spin,

Return To Turn Signal Multifunction Lever

Setting Cruise Control

CAUTION:

If you leave your cruise control switch on when youíre not using cruise, you might hit a button and go into cruise when you donít want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use it.

  1. Move the cruise control switch at the end of the lever on the left of the steering column to ON.
  2. Get up to the speed you want.
  3. Push the SET/COAST button at the end of the lever and release it. The cruise set speed will be displayed by the Driver Information Center (DIC).
  4. Take your foot off the accelerator pedal. The pedal will return to an "idle" position.

Return To Turn Signal Multifunction Lever

Resuming a Set Speed

Suppose you set your cruise control at a desired speed and then you apply the brake or clutch pedal.

Once youíre going about 25 mph (40 km/h) or more,

  1. Move the cruise control switch at the end of the lever on the left of the steering column to R/A (Resume/Accelerate) for about half a second.
  2. The Driver Information Center (DIC) will display the cruise set speed.
  3. Youíll go right back up to your chosen speed and stay there.

Return To Turn Signal Multifunction Lever

Increasing Speed While Using Cruise Control

There are two ways to go to a higher speed:

  1. Use the accelerator pedal to get to the higher speed. The speed will not begin to increase until sufficient pedal travel is achieved.
    1. Push the button at the end of the lever, then
    2. release the button and the accelerator pedal.
    3. Youíll now cruise at the higher speed.
    4. The Driver Information Center (DIC) will display the cruise set speed.
  2. Move the cruise switch at the end of the lever on the left of the steering column to R/A.
    1. Hold it there until you get up to the speed you want, then
      • Release the switch.
    2. To increase your speed in very small amounts, move the switch to R/A for less than half a second, then
      • Release it.
    3. Each time you do this, your vehicle will go about 1 mph (1.6 km/h) faster.

The DIC will display the cruise set speed.

Return To Turn Signal Multifunction Lever

Reducing Speed While Using Cruise Control

There are two ways to reduce your speed while using cruise control:

  1. Push in the button at the end of the lever on the left of the steering column until you reach the lower speed you want, then
    1. Release it.
    2. The Driver Information Center (DIC) will display the cruise set speed button for less than half a second.
    3. Each time you do this, youíll go 1 mph (1.6 km/h) slower.
    4. The DIC will display the cruise set speed.
  2. To slow down in very small amounts,
    1. Push the button for less than half a second.
    2. Each time you do this, youíll go 1 mph (1.6 km/h) slower.
    3. The DIC will display the cruise set speed.

Return To Turn Signal Multifunction Lever

Passing Another Vehicle While Using Cruise Control

Use the accelerator pedal to increase your speed.

Return To Turn Signal Multifunction Lever

Using Cruise Control on Hills

How well your cruise control will work on hills depends upon

When going downhill,

Return To Turn Signal Multifunction Lever

Getting Out of Cruise Control

There are two ways to turn off the cruise control:

Return To Turn Signal Multifunction Lever

Erasing Speed Memory

Your cruise control set speed memory is erased.

Return To Turn Signal Multifunction Lever

Exterior Lamps

Daytime Running Lamps

Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day.

The DRL system will make your front turn signal lamps come on when:

When the DRL are on, only your front turn signal lamps will be on.

When you turn on your headlamps,

On vehicles built for Canada, when itís dark enough outside,

On vehicles built for Canada, when itís bright enough outside,

On Canadian vehicles,

As with any vehicle, you should turn on the regular headlamp system when you need it.

Return To Exterior Lamps

Fog Lamps (Option)

Use your fog lamps for better vision in foggy or misty conditions.

To turn the fog lamps on,

  1. Push the button located on the instrument panel to the left of the steering column.
  2. A light on the button will come on when the fog lamps are on.
  3. Push the button again to turn the fog lamps off.

Return To Exterior Lamps

Interior Lamps

Instrument Panel Brightness Control

This button controls the brightness of your instrument panel lights when your headlamps or parking lamps are on.

Return To Interior Lamps

Courtesy Lamps

When any door or the hatch/trunk lid is opened,

To turn on the courtesy lamps

Return To Interior Lamps

Reading Lamps

Your inside rearview mirror includes two reading lamps.

To manually turn on a reading lamp

There is also an interior console flood lamp

Return To Interior Lamps

Inadvertent Load Control

The Power Load Control

Return To Interior Lamps

Mirrors

Inside Day/night Rearview Mirror

An inside rearview mirror is attached above your windshield.

Return To Mirrors

Powerheated Remote Control Mirrors

The electric mirror control is on the driverís door.

For operation of the heated outside mirrors,

Your passengerís side mirror is convex.

CAUTION

A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.

Return To Mirrors

Storage Compartments

Instrument Panel Cupholder

The cupholder is located on the center console.

Return To Storage Compartments

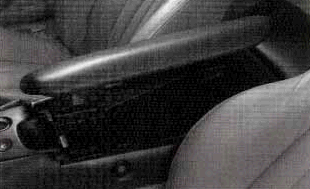

Center Console

To use the center console storage area,

To lock and unlock the console

Located inside the console are

Return To Storage Compartments

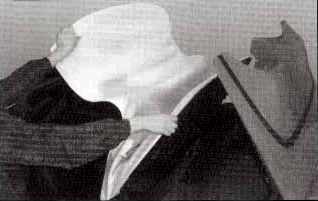

Security Shade (Option)

The security shade

Return To Storage Compartments

Using the Security Shade

  1. Hook the elastic loops on the front corners (A) of the shade to the T-nuts located on the front corners of the rear hatch frame.
  2. Hook the elastic loops on the rear corners (B) of the shade to the hooks recessed inside the rear hatch frame, near the rear corners.

Return To Storage Compartments

Rear Storage

There are three rear storage compartments in the floor of the rear hatch/trunk area.

To access the center storage compartment,

NOTICE:

If your vehicle has a compact disc player, it is stored in the center rear storage compartment. To help avoid damage to the compact disc player, do not store items such as liquids or sharp objects that could puncture or cut the compact disc player or wiring.

NOTICE:

Do not store heavy or sharp objects in the three storage compartments located in the hatch/trunk area. If you do, the objects could damage the underbody.

Return To Storage Compartments

Convenience Net (Option)

Your vehicle may have a convenience net.

Return To Storage Compartments

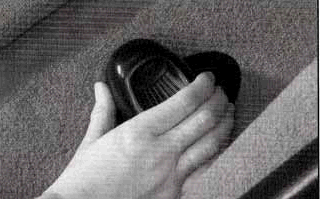

Ashtray and Cigarette Lighter

The ashtray is located on the instrument panel, next to the lighter.

To use the ashtray,

NOTICE:

Donít put papers and other things that burn into your ashtray. If you do, cigarettes or other smoking materials could set them on fire, causing damage.

NOTICE:

Loose objects (such as paper clips) can lodge behind and beneath the ashtray lid and prevent movement of the lid. Avoid putting small loose objects near the ashtray.

To use the lighter,

NOTICE:

Donít hold a cigarette lighter in with your hand while it is heating. If you do, it wonít be able to back away from the heating element when itís ready. That can make it overheat, damaging the lighter and the heating element.

Return To Storage Compartments

Sun Visors

To block out glare,

Return To Storage Compartments

Visor Vanity Mirror

To use the Visor Vanity Mirror

Return To Storage Compartments

Accessory Outlet

This outlet is located inside the center console, on the forward left side.

NOTICE:

When using the accessory outlet:

We recommend that you see a qualified technician or your dealer for the proper installation of your equipment.

Floor Mats (Option)

Your vehicleís floor mats are specially designed to remain in position under your feet and out of reach of the accelerator pedal.



Return To Storage Compartments

How to Remove and Replace the Floor Mats Roof Panel (Coupe)

To remove the floor mats,

To reinstall the floor mats,

For proper cleaning instructions of the carpeted floor mats,

Return To Storage Compartments

Roof Panel (Coupe)

Removing the Roof Panel

CAUTION:

Donít try to remove the roof panel while the vehicle is moving. Trying to remove the roof panel while the vehicle is moving could cause an accident. The panel could fall into the vehicle and cause you to lose control, or it could fly off and strike another vehicle. You or others could be injured. Remove the roof panel only when the vehicle is parked.

Until you are sure you can remove the panel alone, have someone help you.

NOTICE:

To avoid damage to the roof panel, paint and weatherstripping do not drop or rest it on its edges. Place the roof panel in the egg-shaped stowage receivers after removing it from the vehicle.

  1. Park on a level surface,
  2. Open the rear liftgate and remove any items that may interfere with proper storage of the roof panel.
  3. Lower the windows and open the doors.

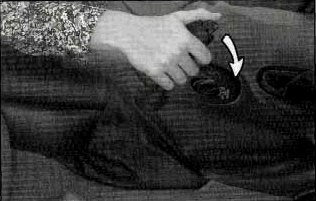

  4. To unlock the front of the roof panel,
  5. To unlock the rear of the roof panel,
  6. After releasing the latches, return the sun visors to the forward position

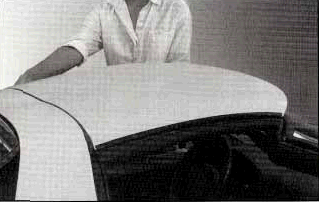

  7. Stand on one side of the vehicle and, if necessary, have your helper stand on the other side.
  8. When the panel is loosened from the vehicle,

Return To Roof Panel (Coupe)

Storing the Roof Panel

CAUTION

If the roof panel is not stored properly, it could be thrown about the vehicle in a crash or sudden maneuver. People in the vehicle could be injured. Whenever you store the roof panel in the vehicle, always be sure that it is stored securely in the rear area using the storage pins.

NOTICE:

To avoid damage to the roof panel, paint and weatherstripping, do not drop or rest it on its edges. Place the roof panel in the egg-shaped stowage receivers after removing it from the vehicle.

  1. Turn the roof panel so that the rear edge of the panel is facing the storage area.
  2. Push the panel forward until the pins bottom out in the receivers.
  3. There are two spring-loaded storage pins on the rear wall of the storage compartment (A).
  4. Gently lower the roof panel onto the carpet ledge.
  5. Gently lift and lower the roof panel to be sure it is locked into place.



Return To Roof Panel (Coupe)

Installing the Roof Panel

 CAUTION:

An improperly attached roof panel may fall into or fly off the vehicle. You or others could be injured. After installing the roof panel, always check that it is firmly attached by pushing up on the underside of the panel. Check now and then to be sure the roof panel is firmly in place.

NOTICE:

To avoid damage to the roof panel, paint and weatherstripping, do not drop or rest it on its edges.

  1. Check to be sure that the front handles and rear latch on the ceiling are in their opened positions before attempting to install the roof panel.
  2. If the roof panel is stored in the rear area,
  3. Remove the roof panel from the storage compartment.
  4. In most cases,
  5. Position the rear edge of the roof panel to the weatherstrip on the back of the roof opening (A).
  6. Rotate the front handles toward the side doors to the closed position.
  7. Hook the rear latch by pushing the lever up to the locked position.
  8. Grasp and tug the roof panel up and down andside-to-side to make sure the roof panel is securely installed.

Return To Roof Panel (Coupe)

Convertible Top (Option)

The following procedures explain the proper operation of your convertible top.

NOTICE:

Certain automatic car washes may cause damage to your vehicle. The top fabric can be damaged by top cleaning brushes.

For care and cleaning of your convertible top,

When lowering and raising the covertible top,

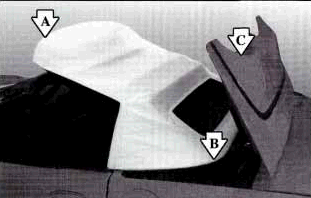

You will use the following:

A. Front Edge of the Convertible Top

B. Rear Edge of the Convertible Top

C. Storage Compartment Lid

Return To Convertible (Option)

Lowering Your Convertible Top

NOTICE:

Donít leave your convertible out with the top down for any long periods of time. The sun and rain can damage your seat material and other things inside your vehicle.

1. Set the parking brake firmly.

NOTICE:

Before lowering the convertible top into the storage area, be sure there are no objects in the way of the folded, stored top. The weight of a stored top on items in the storage area may cause the convertible top back glass to break.

2. Unlock the front of the convertible top by lowering the latch handles and turning them inward.

3. Lift upward on the front edge (A) of the convertible top off of the windshield frame.



4. Tilt the driverís seatback forward and press the storage compartment release button located on the underside of the storage compartment lid (C) behind the driverís seat.

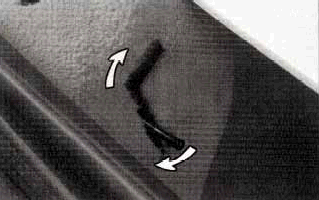

If your vehicle has lost battery power, you can still open the storage compartment lid (C)

The cable is located underneath the carpeting behind the driver and passenger seats in the center of the vehicle.

NOTICE:

Be sure that the rear edge (B) of the convertible top is in the full-down position before lowering the top into the storage compartment or damage to the top may occur.

5. Push forward on the front edge (A) of the convertible top to allow the rear edge (B) of the convertible top to be rotated to its full-down position.

6. Then move the top rearward to its fully-stored position.

7. After the top is stored, apply one even push on the center of the front edge (A) of the convertible top to assure the top is fully retracted.

8. Close the storage compartment lid (C) by closing with a swift firm motion.

Return To Convertible (Option)

Raising Your Convertible Top

1. Park on a level surface, set the parking brake firmly and shift an automatic transmission into PARK (P).

2. Tilt the driverís seat forward and press the storage compartment release button, or use the manual release cable if battery power has been lost.

3.Pull the top up by firmly gripping the front edge (A) of the convertible top with your hand and applying a brisk firm upward and forward motion to get the top in the full-up position.

4.Lift the rear edge (B) of the convertible top to its full-up position by first raising the front edge (A).

5.Close the storage compartment lid (C) by closing with a swift, firm motion.

6.Lower the rear edge (B) of the convertible top by first slightly pushing the front edge (A) of the convertible top forward.

7. Push the front edge (A) of the convertible top down from the outside of the vehicle, or pull the front edge (A) of the convertible top down from the center pull-down handle located in the inside of the vehicle.

Return To Convertible (Option)



Instrument Panel Cluster

Return To Features and Controls



Your instrument cluster and Driver Information Center (DIC) are designed to let you know at a glance how your vehicle is running.

Return To Instrument Panel Cluster

Speedometer

Your speedometer lets you see your speed in either miles per hour (mph) or kilometers per hour (km/h).

Return To Instrument Panel Cluster

Tachometer

The tachometer displays the engine speed in thousands of revolutions per minute (rpm).

Return To Instrument Panel Cluster

Warning Lights, Gages and Messages

This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them.

Warning lights and gages

Gages can indicate when there may be or is a problem with one of your vehicleís functions.

Check the appropriate section

Please follow the Owner's Manualís advice.

Your vehicle also has a Driver Information Center that works along with the warning lights and gages.

Return To Instrument Panel Cluster

Safety Belt Reminder Light

When the key is turned to ON or START,

Return To Instrument Panel Cluster

Air Bag Readiness Light

There is an air bag readiness light on the instrumentí panel, which shows a deployed air bag symbol.

This light will

If the air bag readiness light

The air bag readiness light

Return To Instrument Panel Cluster

Voltmeter

When the key is in the ON position with the engine not running,

When the engine is running,

Return To Instrument Panel Cluster

Brake System Warning Light

Your vehicleís hydraulic brake system is divided into two parts.



This light should come on when you turn the ignition key to START.

on when you start your It may take longer to stop. If the light is still system, the light will come t

Return To Instrument Panel Cluster

Anti-Lock Brake System Warning Light

With the anti-lock brake several seconds. Your Vehicle" in the Index.)

Thatísínormal.

Your brake system may not be working properly if the brake warning light is on.

The anti-lock brake system warning light

Return To Instrument Panel Cluster

Traction Control System (TCS) Light

This light should come on briefly as you start the engine.

Return To Instrument Panel Cluster

Engine Coolant Temperature Gage

This gage shows the engine coolant temperature.

In "Problems on the Road," this manual shows what to do.

Return To Instrument Panel Cluster

Malfunction Indicator Lamp

(Check Engine Light)

Your vehicle is equipped with a computer which monitors operation of the

This system is called OBD II (On-Board Diagnostics-Second Generation)

NOTICE:

If you keep driving your vehicle with this light on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly.

Return To Instrument Panel Cluster

If the Light Is Flashing

The following may prevent more serious damage to your vehicle:

If the light stops flashing and remains on steady,

If the light continues to flash,

Return To Instrument Panel Cluster

If the Light Is On Steady

You may be able to correct the emission system malfunction by considering the following:

Return To Instrument Panel Cluster

Engine Oil Pressure Gage

The engine oil pressure gage shows the engine oil pressure when the engine is running in

The engine oil pressure can also be displayed

CAUTION

Donít keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches fire. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.

NOTICE:

Damage to your engine from neglected oil problems can be costly and is not covered by your warranty.

Return To Instrument Panel Cluster

Security Light

This light comes on to remind you to arm your theft-deterrent system.

Return To Instrument Panel Cluster

Check Gages, Light

This light will come on briefly when you are starting the engine.

This light can come on for the following reasons:

Return To Instrument Panel Cluster

Fuel Gage

Your fuel gage shows about how-much fuel is in your tank.

Here are three concerns some owners have had about the fuel gage. All these situations are normal and do not indicate that anything is wrong with the fuel gage.

You can use the DIC to display more detailed fuel information.

You should reset the fuel information display every time you refuel.

Return To Instrument Panel Cluster

Driver Information Center (DIC)

Return To Features and Controls

The Driver Information Center (DIC)

The following buttons are on the DIC control panel which is located to the right of the cluster:

At the top of the DIC control buttons is a light sensor.

Return To Driver Information Center

DIC Controls and Displays

Turn on the system

If a problem is detected,

1 FUEL

The FUEL button

To display average fuel economy

The average fuel economy

To reset the average fuel economy

To display the range

The fuel economy data used to determine fuel range

To reset the fuel range

Return To Driver Information Center

2 GAGES:

To display the oil pressure

To display the oil temperature

To display the coolant temperature

To display the transmission fluid temperature (automatics only)

To display the battery voltage

To display the tire pressure for the front tires (left and right)

Press the GAGE button again to display the tire pressure for the rear tires (left and right)

Return To Driver Information Center

3 TRIP

The TRIP button allows you to scroll through the functions listed below when you press it.

Return To Driver Information Center

Odometer

The odometer shows how far your vehicle has been driven in either miles or kilometers.

To display odometer readings

Return To Driver Information Center

Trip Odometers

There are two trip odometers.

To display trip odometer readings

To reset Trip A Display

To reset Trip B Display

Return To Driver Information Center

Miles Since Last Ignition Feature

You can also display number of miles driven since you last started the car

To display the Miles since last ignition feature

Return To Driver Information Center

Elapsed Time

To display the Elapsed Time

When the ignition is in the ON position, the DIC can be used as a stopwatch.

You can start or stop the elapsed time

To reset the elapsed time to zero

Return To Driver Information Center

Average Speed

To display the Average speed

To reset the Average Speed

Return To Driver Information Center

Engine Oil Life

Engine oil life is an estimate of the engine oilís remaining useful life.

To display the Engine Oil Life

To reset the OIL LIFE reminder after an oil change:

  1. With the ignition on, press the TRIP button so the OIL LIFE percentage is displayed.
  2. Press RESET and hold for two seconds. The word RESET will appear, then OIL LIFE 99%.

You must reset the OIL LIFE yourself after each oil change.

The DIC does not replace the need to maintain your vehicle as recommended in the Maintenance Schedule in this manual. Also, the oil change reminder will not detect dusty conditions or engine malfunctions that may affect the oil. If you drive in dusty areas, change your oil after every 3,000 miles (5 000 km) or three months, whichever occurs first, unless the DIC instructs you to do so sooner. Also, the oil change reminder does not measure how much oil you have in your engine, so be sure to check your oil level often. See "Engine Oil" in the Index.

Return To Driver Information Center

4 OPTIONS

This button allows you to choose personal options available with your vehicle,

When returning to the options menu

Return To Driver Information Center

The following are the options listed under the OPTIONS button:

Lock and Arm

To display and select the LOCK & ARM Options

Return To Driver Information Center

Alarm

To display and select the ALARM Options

Return To Driver Information Center

Passive Unlock

To display and select the Passive Unlock Options

See "Remote Function Actuation (FWA) System" in the Index for more information.

Return To Driver Information Center

Approach Lights

To display and select the APPROACH LIGHTS Options

See "Remote Function Actuation (RFA) System" in the Index for more information.

Return To Driver Information Center

Auto Lock

To display and select the AUTO LOCK Options

Return To Driver Information Center

Auto Unlock

The AUTO UNLOCK will be available only if AUTO LOCK is set to ON.

To display and select the AUTO UNLOCK Options

Return To Driver Information Center

Seat Easy Entry

The easy entry feature will only be available if the vehicle is equipped with the memory option.

To display and select the SEAT EASY ENTRY Options

Return To Driver Information Center

Languages

You can select which language the DIC will display its messages in.

To display and select the LANGUAGES Options

Return To Driver Information Center

Blank Page

There is a blank page at the end of the OPTIONS menu.

Return To Driver Information Center

Return To Driver Information Center

DIC Warnings and Messages

The following messages and warnings may appear in the DIC display.

Return To Driver Information Center

ABS ACTIVE (Anti-Lock Brake System Active)

The ABS ACTIVE message will be displayed.

Return To Driver Information Center

SERVICE ABS (Anti-Lock Brake System)

If the SERVICE ABS message is displayed when you are driving,

Return To Driver Information Center

SERVICE COLUMN LOCK

When the SERVICE COLUMN LOCK message is displayed

Return To Driver Information Center

LOW OIL PRESSURE

When LOW OIL PRESSURE message is displayed

Low oil pressure may be the result of a combination of

Return To Driver Information Center

LOW OIL LEVEL

When LOW OIL PRESSURE message is displayed

Return To Driver Information Center

REDUCED ENGINE POWER

When the REDUCED ENGINE POWER message is displayed

If the REDUCED ENGINE POWER message and the CHECK ENGINE light comes on,

If the REDUCED ENGINE POWER message is displayed in combination with the COOLANT OVER TEMP message,

Return To Driver Information Center

SERVICE VEHICLE SOON

When the SERVICE VEHICLE SOON message is displayed

Return To Driver Information Center

CHARGE SYSTEM FAULT

When the CHARGE SYSTEM FAULT message is displayed

Return To Driver Information Center

TRACTION SYS ACTIVE

When the TRACTION SYS ACTIVE message is displayed

Return To Driver Information Center

TRACTION SYSTEM-ON

The TRACTION SYSTEM-ON  message is displayed when you decide to turn on the system

Return To Driver Information Center

TRACTION SYSTEM-OFF

When the TRACTION SYSTEM-OFF message is displayed

Return To Driver Information Center

SERVICE TRACTION SYSTEM

If the SERVICE TRACTION SYS message is displayed when you are driving,

If you have the optional Active Handling System,

Return To Driver Information Center

SERVICE RIDE CONTROL

When the SERVICE RIDE CONTROL message is displayed

Return To Driver Information Center

SHOCKS INOPERATIVE

When the SHOCK INOPERATIVE message is displayed

Return To Driver Information Center

MAXIMUM SPEED 80 MPH (129 km/h):

When the MAXIMUM SPEED 80 MPH (129 km/h) message is displayed

Return To Driver Information Center

LOW COOLANT

When the LOW COOLANT message is displayed

Return To Driver Information Center

COOLANT OVER TEMP:

When the COOLANT OVER TEMP message is displayed

Return To Driver Information Center

HIGH OIL TEMPERATURE REDUCE ENGINE RPM:

When the HIGH OIL TEMPERATURE REDUCE ENGINE RPM message is displayed

Return To Driver Information Center

HIGH TRANS TEMP:

When the HIGH TRANS TEMP message is displayed

Return To Driver Information Center

LOW TIRE PRESSURE - (LF, LR, RF, RR):

When the LOW TIRE PRESSURE message is displayed

CAUTION

When the LOW TIRE PRESSURE or FLAT TIRE message is displayed on the Driver Information Center, your vehicleís handling capabilities will be reduced during severe maneuvers. If you drive too fast, you could lose control of your vehicle. You or others could be injured. Donít drive over 55 mph (90 km/h) when the LOW TIRE PRESSURE or FLAT TIRE message is displayed. Drive cautiously, and check your tire pressures as soon as you can.

Return To Driver Information Center

FLAT TIRE - (LF, LR, RF, RR):

When the FLAT TIRE message is displayed

Return To Driver Information Center

HIGH TIRE PRESSURE - (LF, LR, RF, RR):

When the HIGH TIRE PRESSURE message is displayed

Return To Driver Information Center

SERVICE TIRE MON SYS:

When the SERVICE TIRE MOM SYS message is displayed

Return To Driver Information Center

Other Messages

Here are more messages that you can receive on your Driver Information Center. To acknowledge a message and read another message that may have come on at the same time, press the RESET button.

Return To Driver Information Center

Computer Codes

These are the codes and their definitions. They give an in depth identification of your C5 Corvette's performance.

Turn the key to the ON position, but don't start the engine. Clear any present messages  by pressing the RESET button. Hold the OPTIONS button down, and press the FUEL button 4 times. This will get you into the CODES section of the DIC. The computer will automatically display all the codes your car  has created. It will cycle through each code every 3 seconds. Any code that ends in H is a history code (something that has occurred in the past) but is fine now. Once the computer has finished going through all of it's codes, press RESET to enter Manual Configuration mode. It should start with a module and show "NO CODES" or "# CODES".

To optionally reset the codes once in manual mode, press and hold RESET until it displays "NO CODES". Press OPTIONS to go to the next module. Repeat the steps in this paragraph until you have reset the codes in all the computer modules
. NOTE !! Only reset the codes IF you want to - it is NOT necessary to do this.



CODE LIST

10-PCM - Powertrain Control Module
P0101 Mass Air Flow (MAF) System Performance
P0102 Mass Air Flow (MAF) Sensor Circuit Low Frequency
P0103 Mass Air Flow (MAF) Sensor Circuit High Frequency
P0107 Manifold Pressure (MAP) Sensor Circuit Low Voltage
P0108 Manifold Pressure (MAP) Sensor Circuit High Voltage
P0112 Intake Air Temp (IAT) Sensor Circuit Low Voltage
P0113 Intake Air Temp (IAT) Sensor Circuit High Voltage
P0117 Engine Coolant Temp (ECT) Sensor Low Voltage
P0118 Engine Coolant Temp (ECT) Sensor High Voltage
P0118 Engine Coolant Temperature (ECT) Excessive Time to Closed Loop Fuel Control
P0131 Heated Oxygen Sensor (HO2S) Circuit Low Voltage Bank 1 Sensor 1
P0132 Heated Oxygen Sensor (HO2S) Circuit High Voltage Bank 1 Sensor 1
P0133 Heated Oxygen Sensor (HO2S) Slow Response Bank 1 Sensor 1
P0134 Heated Oxygen Sensor (HO2S) Circuit Insufficient Activity Bank 1 Sensor 1
P0135 Heated Oxygen Sensor (HO2S) Heater Circuit Bank 1 Sensor 1
P0137 Heated Oxygen Sensor (HO2S) Circuit Low Voltage Bank 1 Sensor 2
P0138 Heated Oxygen Sensor (HO2S) Circuit High Voltage Bank 1 Sensor 2
P0140 Heated Oxygen Sensor (HO2S) Circuit Insufficient Activity Bank 1 Sensor 2
P0141 Heated Oxygen Sensor (HO2S) Heater Circuit Bank 1 Sensor 2
P0151 Heated Oxygen Sensor (HO2S) Circuit Low Voltage Bank 2 Sensor 1
P0152 Heated Oxygen Sensor (HO2S) Circuit High Voltage Bank 2 Sensor 1
P0153 Heated Oxygen Sensor (HO2S) Slow Response Bank 2 Sensor 1
P0154 Heated Oxygen Sensor (HO2S) Circuit Insufficient Activity Bank 2 Sensor 1
P0155 Heated Oxygen Sensor (HO2S) Heater Circuit Bank 2 Sensor 1
P0157 Heated Oxygen Sensor (HO2S) Circuit Low Voltage Bank 2 Sensor 2
P0158 Heated Oxygen Sensor (HO2S) Circuit High Voltage Bank 2 Sensor 2
P0160 Heated Oxygen Sensor (HO2S) Circuit Insufficient Activity Bank 2 Sensor 2
P0161 Heated Oxygen Sensor (HO2S) Heater Circuit Bank 2 Sensor 2
P0171 Fuel Trim System Lean Bank 1
P0172 Fuel Trim System Rich Bank 1
P0174 Fuel Trim System Lean Bank 2
P0175 Fuel Trim System Rich Bank 2
P0230 Fuel Pump Control Circuit
P0300 Engine Misfire Detected
P0325 Knock Sensor (KS) System
P0327 Knock Sensor (KS) Circuit Front
P0332 Knock Sensor (KS) Circuit Rear
P0335 CKP Sensor Circuit
P0336 CKP Sensor Circuit Performance
P0341 CMP Circuit Performance
P0342 CMP Sensor Circuit Low Voltage
P0343 CMP Sensor Circuit High Voltage
P0351 Ignition Control #1 Circuit
P0352 Ignition Control #2 Circuit
P0353 Ignition Control #3 Circuit
P0354 Ignition Control #4 Circuit
P0355 Ignition Control #5 Circuit
P0356 Ignition Control #6 Circuit
P0357 Ignition Control #7 Circuit
P0358 Ignition Control #8 Circuit
P0410 AIR System
P0412 AIR Solenoid Relay Control Circuit
P0418 AIR Pump Relay Control Circuit
P0420 TWC System Low Efficiency Bank 1
P0430 TWC System Low Efficiency Bank 2
P0441 EVAP System No Flow During Purge
P0461 Fuel Level Sensor 1 Circuit Performance
P0462 Fuel Level Sensor 1 Circuit Low Voltage
P0463 Fuel Level Sensor 1 Circuit High Voltage
P0480 FC Relay 1 Control Circuit
P0481 FC Relay 2 and 3 Control Circuit
P0500 VSS Circuit (M/T)
P0506 Idle Speed Low
P0507 Idle Speed High
P0522 Engine Oil Pressure Sensor Circuit Low Voltage
P0523 Engine Oil Pressure Sensor Circuit High Voltage
P0530 A/C Refrigerant Pressure Sensor Circuit
P0562 System Voltage Low
P0563 System Voltage High
P0567 Cruise Resume Circuit
P0568 Cruise Set Circuit
P0571 Cruise Brake Switch Circuit (M/T)
P0601 PCM Memory
P0602 PCM Not Programmed
P0604 PCM RAM Performance
P0606 PCM Internal Communication Interrupted
P0608 VSS Output Circuit
P0650 MIL Control Circuit
P0654 Engine Speed Output Circuit
P0704 Clutch Switch Circuit (M/T)
P0705 Transmission Range Switch Circuit (A/T)
P0706 Transmission Range Switch Performance (A/T)
P0801 Reverse Inhibit Solenoid Control Circuit (M/T)
P0803 1-4 Upshift Solenoid Control Circuit (M/T)
P0804 1-4 Upshift Lamp Control Circuit (M/T)
P1111 Intake Air Temperature (IAT) Sensor Circuit Intermittent High Voltage
P1112 Intake Air Temperature (IAT) Sensor Circuit Intermittent Low Voltage
P1114 ECT Sensor Circuit Intermittent Low Voltage
P1115 ECT Sensor Circuit Intermittent High Voltage
P1120 TP Sensor 1 Circuit
P1125 APP System
P1133 Heated Oxygen Sensor (HO2S) Insufficient Switching Bank 1 Sensor 1
P1134 Heated Oxygen Sensor (HO2S) Transition Time Ratio Bank 1 Sensor 1
P1153 Heated Oxygen Sensor (HO2S) Insufficient Switching Bank 2 Sensor 1
P1154 Heated Oxygen Sensor (HO2S) Transition Time Ratio Bank 2 Sensor 1
P1220 TP Sensor 2 Circuit
P1221 TP Sensors 1, 2 Performance
P1258 Engine Coolant Over Temperature-Fuel Disabled
P1275 APP Sensor 1 Circuit
P1276 APP Sensor 1 Circuit Performance
P1280 APP Sensor 2 Circuit
P1281 APP Sensor 2 Circuit Performance
P1285 APP Sensor 3 Circuit
P1286 APP Sensor 3 Circuit Performance
P1380 EB (T) CM DTC Detected- Rough Road Data Unusable
P1381 Misfire Detected - No EB (T) CM/PCM Serial Data
P1415 AIR System Bank 1
P1416 AIR System Bank 2
P1431 Fuel Level Sensor 2 Circuit Performance
P1432 Fuel Level Sensor 2 Low Voltage
P1433 Fuel Level Sensor 2 High Voltage
P1441 Evaporative Emissions (EVAP) System Flow During Non-Purge
P1514 TAC System MAF Performance
P1515 Command vs Actual Throttle Position Performance (PCM Module)
P1516 Command vs Actual Throttle Position Performance (TAC Module)
P1517 TAC Module Processor
P1518 PCM to TAC Module Serial Data Circuit
P1539 A/C Clutch Status Circuit High Voltage
P1545 A/C Clutch Relay Control Circuit
P1546 A/C Clutch Status Circuit Low Voltage
P1571 ASR Desired Torque
P1574 Stop Lamp Control Circuit
P1575 Extended Travel Brake Switch Circuit High Voltage
P1626 Theft Deterrent System Fuel Enable Circuit
P1630 Theft Deterrent System PCM In Learn Mode
P1631 Theft Deterrent System Password Incorrect
P1635 5 Volt Reference #1 Circuit
P1639 5 Volt Reference #2 Circuit
P1644 Delivered Torque Output Circuit
P1652 Powertrain Induced Chassis Pitch Output Circuit


28-TCS - Traction Control System
C1214 Sol Valve Relay Contact or Coil CKT Open
C1217 BPMV Pump Motor Relay Contact CKT Open
C1221 LF Wheel Speed Sensor Input Signal is 0
C1222 RF Wheel Speed Sensor Input Signal is 0
C1223 LR Wheel Speed Sensor Input Signal is 0
C1224 RR Wheel Speed Sensor Input Signal is 0
C1225 RF Excessive Wheel Speed Variation
C1226 LF Excessive Wheel Speed Variation
C1227 LR Excessive Wheel Speed Variation
C1228 RR Excessive Wheel Speed Variation
C1232 LF Wheel Speed Circuit Open or Shorted
C1233 RF Wheel Speed Circuit Open or Shorted
C1234 LR Wheel Speed Circuit Open or Shorted
C1235 RR Wheel Speed Circuit Open or Shorted
C1236 Low System Supply Voltage
C1237 High System Supply Voltage
C1241 Magna Steer Circuit Malfunction
C1242 BPMV Pump Motor Ground Circuit Open
C1243 BPMV Pump Motor Stalled
C1255 EBTCM Internal Malfunction
CEBCM Internal Malfunction
C1261 LF Inlet Valve Solenoid Malfunction
C1262 LF Outlet Valve Solenoid Malfunction
C1263 RF Inlet Valve Solenoid Malfunction
C1264 RF Outlet Valve Solenoid Malfunction
C1265 LR Inlet Valve Solenoid Malfunction
C1266 LR Outlet Valve Solenoid Malfunction
C1267 RR Inlet Valve Solenoid Malfunction
C1268 RR Outlet Valve Solenoid Malfunction
C1273 RF TCS Master Cyl Isolation Valve Malfunction
C1274 RF TCS Prime Valve Malfunction
C1276 Delivered Torque Signal CKT Malfunction
C1277 Requested Torque Signal CKT Malfunction
C1278 TCS Temporarily Inhibited By PCM
C1281 Steering Sensor Uncorrelated Malfunction
C1286 Steering Sensor Bias Malfunction
C1287 Steering Sensor Rate Malfunction
C1291 Open Brake Lamp Sw Contacts During Deccel
C1293 DTC C1291/C1292 Set Curnt/Prev Ign Cylce
C1294 Brake Lamp Switch Circuit Always Active
C1295 Brake Lamp Switch Circuit Open
U1016 Loss of Communications with PCM
U1255 Generic Loss Communications
U1300 Class 2 Circuit Shorted to Ground
U1301 Class 2 Circuit Shorted to Battery


38-RTD - Real Time Damping
C1650 ESC Module Malfunction
C1658 EEPROM Calibration Malfunction
C1710 LF Shock Absorber Solenoid (Short to Voltage)
C1711 LF Shock Absorber Solenoid (Short to GND)
C1712 LF Shock Absorber Solenoid (Open Circuit)
C1715 RF Shock Absorber Solenoid (Short to Voltage)
C1716 RF Shock Absorber Solenoid (Short to GND)
C1717 RF Shock Absorber Solenoid (Open Circuit)
C1720 LR Shock Absorber Solenoid (Short to Voltage)
C1721 LR Shock Absorber Solenoid (Short to GND)
C1722 LR Shock Absorber Solenoid (Open Circuit)
C1725 RR Shock Absorber Solenoid (Short to Voltage)
C1726 RR Shock Absorber Solenoid (Short to GND)
C1727 RR Shock Absorber Solenoid (Open Circuit)
C1743 Loss of Vehicle Speed Signal
C1760 LF Position Sensor (Out of Range)
C1761 RF Position Sensor (Out of Range)
C1762 LR Position Sensor (Out of Range)
C1763 RR Position Sensor (Out of Range)
C1768 Position Sensor Supply Malfunction (Overcurrent)
C1780 Loss of Steering Position Signal
C1786 RTD Control Relay Malfunction
C1787 RTD Control Relay Circuit (Open or Short to GND)
C1788 RTD Control Relay Circuit (Short to Voltage)
C1790 Ride Control Switch (Out of Range)
C1791 Ride Control Switch (Contact Malfunction)


40-BCM -Body Control Module
B0432 Rear Defogger Relay Circuit
B0433 Rear Defogger Relay Circuit
B0502 RH DRL Relay Circuit
B0503 RH DRL Relay Circuit
B0507 LH DRL Relay Circuit
B0508 LH DRL Relay Circuit
B0605 BCM Internal Memory Function
B0844 BCM Temporarily Inhibit ABS
B2403 Front Fog Lamp Switch Circuit
B2408 Rear Fog Lamp Switch Circuit
B2482 Backup Lamp Relay Circuit
B2483 Backup Lamp Relay Circuit
B2527 Horn Relay Circuit
B2528 Horn Relay Circuit
B2573 Hatch Release Switch Circuit (Short to Voltage)
B2578 RF Turn Signal Monitor Circuit (Short to Voltage)
B2583 LF Turn Signal Monitor Circuit (Short to Voltage)
B2587 Column Lock/Unlock Drive (A)
B2588 Column Lock/Unlock Drive (A)
B2592 Column Lock/Unlock Drive (B)
B2583 Column Lock/Unlock Drive (B)
B2597 Traction Control System Switch Circuit
B2721 PASS-Key Detection Circuit
B2722 PASS-Key Detection Circuit
B2723 PASS-Key Detection Circuit
B2735 PASS-Key Programming Mode Active
U1016 Loss of Communications with PCM
U1096 Loss of Communications with IPC
U1255 Serial Data Line Malfunction


60-IPC - Instrument Panel Cluster
B0516 Speedometer Signal Circuit Malfunction
B0521 Tachometer Signal Circuit Malfunction
B1512 DIC Switch 1 Signal Short to GND "FUEL"
B1517 DIC Switch 2 Signal Short to GND "GAGES"
B1522 DIC Switch 3 Signal Short to GND "TRIP"
B1527 DIC Switch 4 Signal Short to GND "OPTIONS"
B1532 DIC Switch 5 Signal Short to GND "E/M"
B1537 DIC Switch 6 Signal Short to GND "RESET"
B1542 Oil Temperature Circuit Short to GND
B1543 Oil Temperature Circuit Open
U1016 Loss of Communications with PCM
U1040 Loss of Communications with TCS
U1056 Loss of Communications with RTD
U1064 Loss of Communications with BCM
U1128 Loss of Communications with Radio
U1153 Loss of Communications with HVAC
U1160 Loss of Communications with LDCM
U1161 Loss of Communications with RDCM
U1166 Loss of Communications with SCM
U1176 Loss of Communications with RFA
U1255 Serial Data Line Malfunction


80-Radio - Radio Not Found

99-HVAC - Heater, Ventilation, Air Conditioning
B0332 Outside Air Temp Sensor Short to GND
B0333 Outside Air Temp Sensor Open
B0337 Inside Air Temp Sensor Short to GND
B0338 Inside Air Temp Sensor Open
B0348 Sunload Temperature Sensor Open
B0361 Left Actuator Feedback Short to GND
B0363 Left Actuator Feedback Open
B0365 Right Actuator Feedback Short to GND
B0367 Right Actuator Feedback Open
B0441 Left Actuator Out of Range
B0446 Right Actuator Out of Range
B1016 Loss of Communications with PCM
U1064 Loss of Communications with BCM
U1096 Loss of Communications with IPC
U1255 Serial Data Line Malfunction

A0-LDCM - Left Door Control Module
B2202 Left Window Up Switch Fault
B2204 Left Window Down Switch Fault
B2206 Right Window Up Switch Fault
B2208 Right Window Down Switch Fault
B2222 LT Mirror Select Switch Fault
B2224 RT Mirror Select Switch Fault
B2226 Mirror Right Switch Fault
B2228 Mirror Left Switch Fault
B2232 Mirror Up Switch Fault
B2234 Mirror Down Switch Fault
B2236 Left Door Lock Switch Fault
B2238 Left Door UnLock Switch Fault
B2242 Memory 1 Switch Fault
B2244 Memory 2 Switch Fault
B2252 Key Cylinder Switch Fault
B2262 Horizontal Position Sensor Fit
B2264 Vertical Position Sensor Fault
B2272 Left Mirror Motor Fault
B2274 Window Motor Fault
B2276 Door Lock Motor/Mirror Heater Fit
B2282 Battery #1 Fault
B2284 Battery #2 Fault
B2286 +5V Reference Fault
U1064 Loss of Communications with BCM
U1096 Loss of Communications with IPC
U1255 Serial Data Line Malfunction

A1-RDCM - Right Door Control Module
B2203 Right Window Up Switch Fault
B2205 Right Window Down Switch Fault
B2237 Right Door Lock Switch Fault
B2239 Right Door Un-Lock Switch Fault
B2253 Key Cylinder Switch Fault
B2263 Horizontal Position Sensor Fit
B2265 Horizontal Position Sensor Fault
B2273 Right Mirror Motor Fault
B2275 Window Motor Fault
B2277 Door Lock Motor/Mirror Heater Fit
B2283 Battery #1 Fault
B2285 Battery #2 Fault
B2287 +5V Reference Fault
U1064 Loss of Communications with BCM
U1096 Loss of Communications with IPC
U1255 Serial Data Line Malfunction

A6-SCM - Seat Control Module
B0846 Battery 2 Out of Range
B0851 Battery 1 Out of Range
B2002 Fore/Aft Seat Motor Open or Short to GND
B2007 Front Vertical Seat Motor Open or Shorted
B2012 Rear Vertical Seat Motor Open or Shorted
B2172 Seat Front Up Switch Shorted to GND
B2177 Seat Front Down Switch Shorted to GND
B2182 Seat Rear Up Switch Shorted to GND
B2187 Seat Rear Down Switch Shorted to GND
B2192 Seat Forward Switch Shorted to GND
B2197 Seat Reverse Switch Shorted to GND
B2605 Seat Front Vertical Position Sensor Failure
B2606 Seat Rear Vertical Position Sensor Failure
B2607 Seat Horizontal Position Sensor Failure

B0-RFA - Remote Function Actuation
B0605 Receiver Internal Memory Malfunction
B2805 No Transmitters Programmed
C2100 Left Front TPM Sensor Malfunction
C2105 Right Front TPM Sensor Malfunction
C2110 Right Rear TPM Sensor Malfunction
C2115 Left Rear TPM Sensor Malfunction
C2120 TPM System Malfunction (No Sensors Received)
C2121 TPM System Programming Malfunction (No Sensors Programmed)
U1000 Loss of Communication Undetermined
U1016 Loss of Communication with PCM
U1064 Loss of Communication with BCM
U1096 Loss of Communication with IPC
U1255 Serial Data Line Malfunction

Return To Driver Information Center

Index

Return To Top of Manual

A / B / C / D / E / F / G / H / I / J / K / L / M / N / O / P / R / S / T / U / V / W

A

B



C

D

E

F

G

H

I

J

K

L

M

N

O

P

R

S

T

U

V

W

9-10

.Return To Top of Manual

safepic@safepic.com
Copyright © 2001 Proactive Information Corporation

Top
